PEBBLE - PUBLIC REST AREA


This "Pebble" is a public rest area, to be used for examples during temporary manifestation such as concerts, sports or social events, or less temporary uses such as public parks and places. I created this project in the context of my work for the Inartis Fondation (Renens - Swiss).

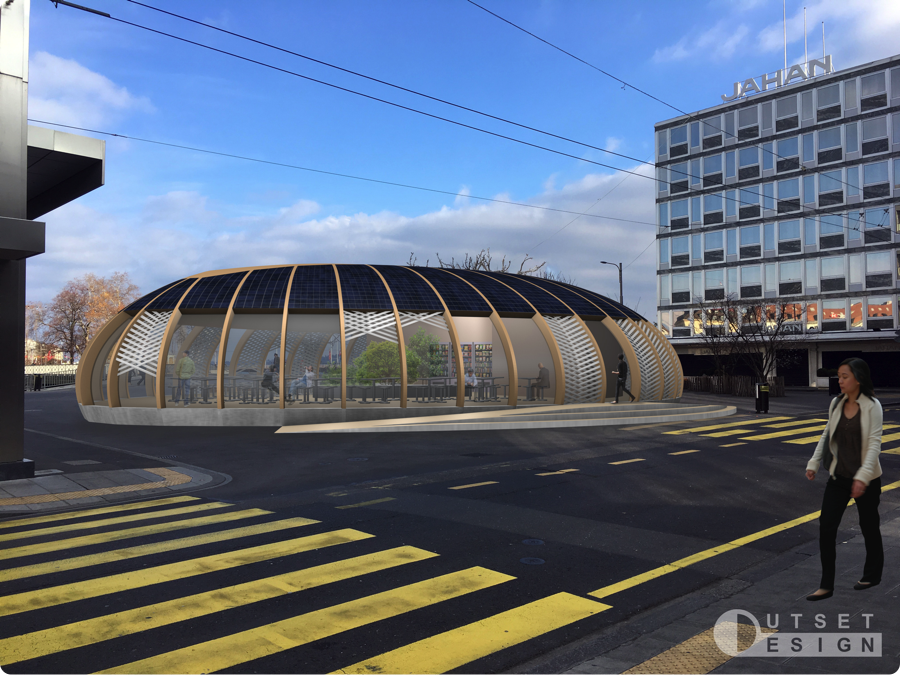

Outset Design Pebble Urban Oasis temporary Rest Area On-site photoshop view

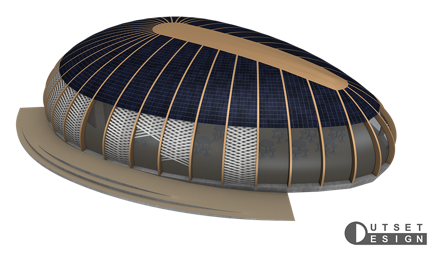

"Solar Pebble" variant

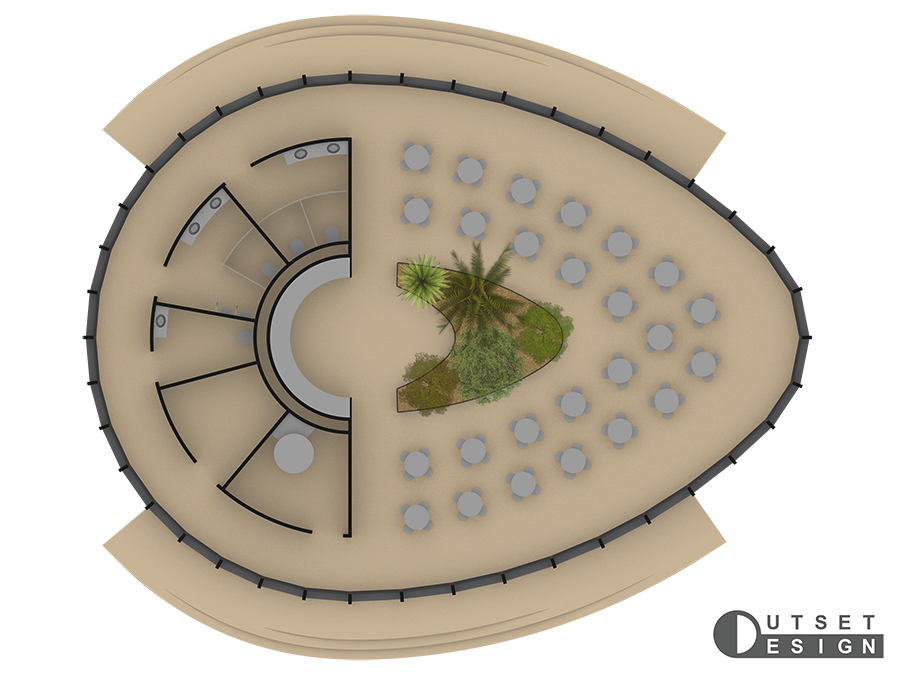

Outset Design Pebble Urban Oasis temporary Rest Area Blueprint orthographic top view

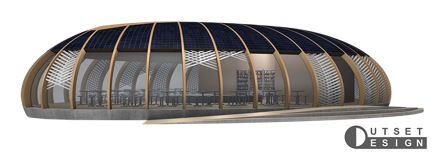

Outset Design Pebble Urban Oasis temporary Rest Area solar variant side view

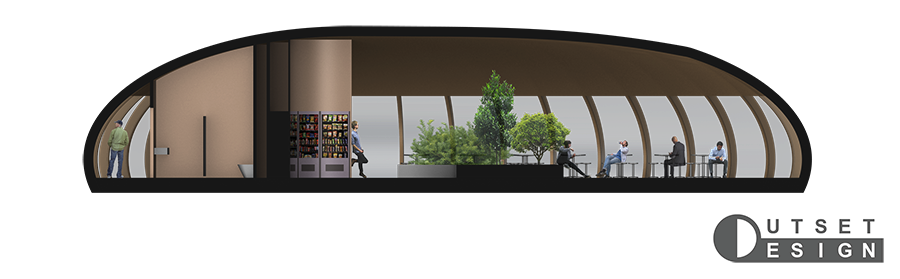

Outset Design Pebble Urban Oasis temporary Rest Area blueprint orthographic side cut view

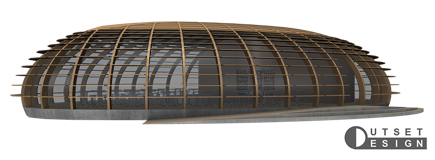

Outset Design Pebble Urban Oasis temporary Rest Area wood variant side view
Outset Design Pebble Urban Oasis temporary Rest Area Sollar variant top view
Outset Design Pebble Urban Oasis temporary Rest Area wood variant top view

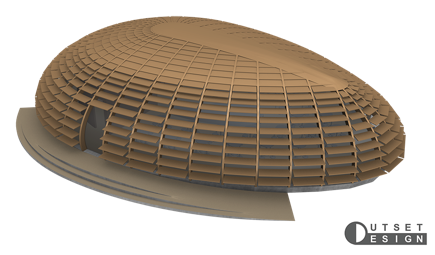

"Wooden Pebble" variant

Outset Design Pebble Urban Oasis temporary Rest Area Sollar variant top view

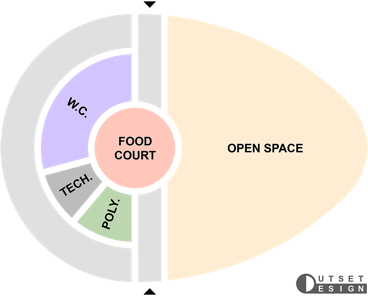

The main area is composed of a food court (food and beverage machines) and an open space that can be furnished according to the needs. The pavilion also contains 3 restrooms (men, women, handicapped), a technical room, and a polyvalent room.

The Pebble is designed to be pre-built, and then have the prefab parts transported and assembled on site. All parts are dimensioned to fit inside standard-sized containers and trucks.

Outset Design Pebble Urban Oasis temporary Rest Area Sollar variant top view

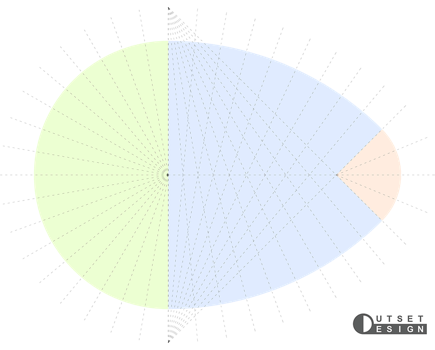

All "ribs" are identical, with only the length of their top part having to be adjusted. The egg shape is obtained by rotating the ribs along 3 different circles: 1/2 circle at the base of the egg, 1/8 circle on the sides, and 1/4 circle at the tip.

This conception allows for standardization of parts: all in-between ribs parts (glass, roof panels, sun protection, ...) are either the same or have only 3 variants, with very little custom parts.
